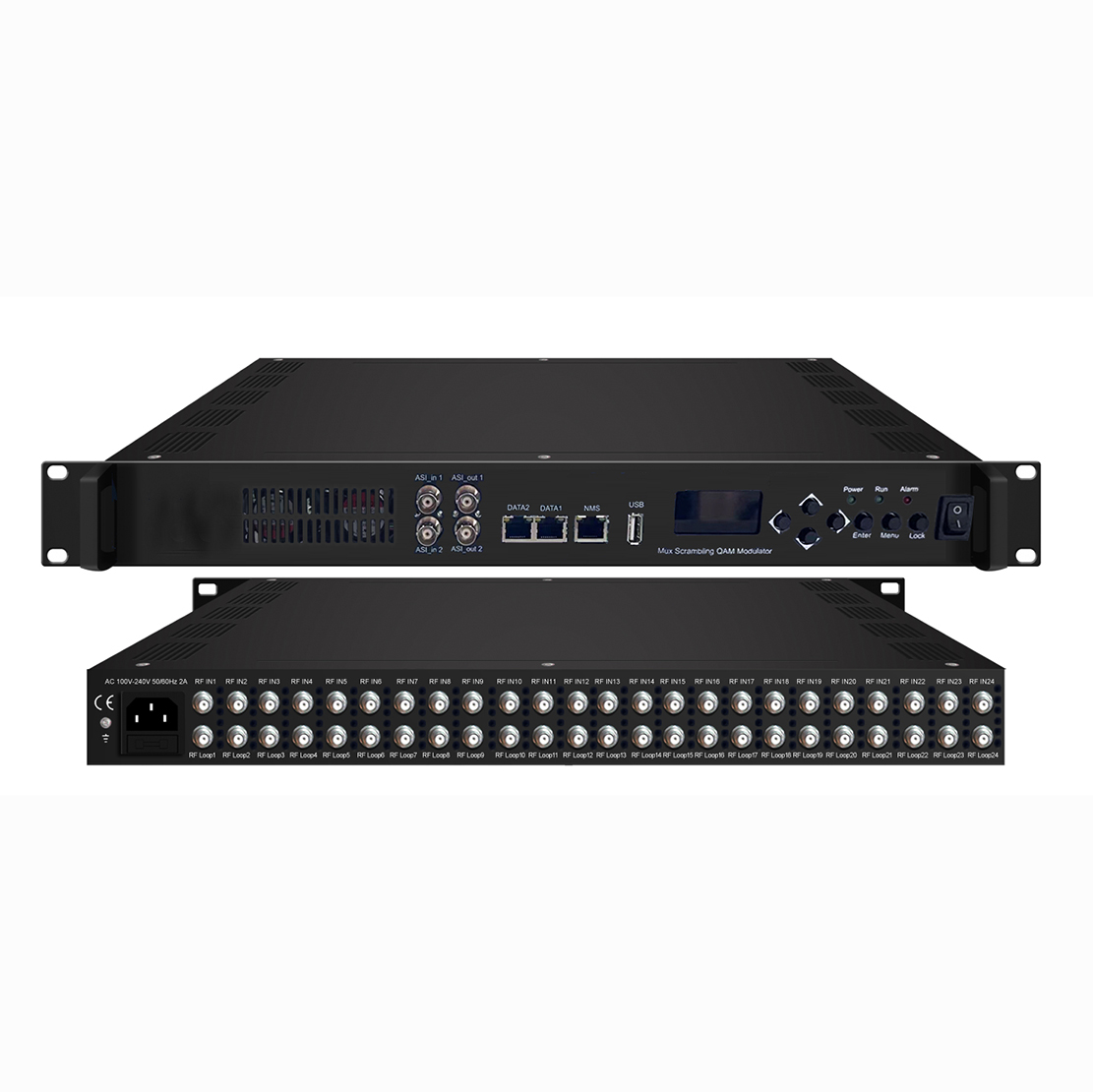

24 DVB-S2 DVB-T ISDB-T DVB-C To IPTV Gateway

Short Description:

24DVB-S2 dvb-t dvb-c isdb-t atsc Tuner to IP Gateway is a head-end interface-conversion device which supports MPTS and SPTS output switchable in Web GUI. It supports 24 MPTS+3 MPTS(2 ASI inputs and 1 USB input) or 1024 SPTS output over UDP and RTP/RTSP protocol. It is integrated with tuner demodulation (or ASI input) and gateway function, which can demodulate the signal from 24 FTA tuners into IP package, or directly convert the TS from ASI inputs or USB input into IP package, then output the IP package through different IP address and ports. BISS function is also embedded for tuner inputs to descramble the programs from tuner inputs.

Send email to us

Product Detail

Product Tags

Key Features

* 24 (or 16) DVB-S/S2/S2X FTA Tuner inputs with loop out + 2 ASI inputs+128 IP inputs thru DATA 1 over UDP and RTP protocol, and TS files input by playing ts via an USB disk (FAT 32)

* 8 DVB-T non-adjacent carriers output, within 192MHz bandwidth

* 8 IP (MPTS) outputs over UDP and RTP/RTSP, as mirror of the carriers

* 2 TS outputs thru ASI out 1 and ASI out 2, as mirror of the 2 chosen carriers

* Support 8 groups multiplexing+8 groups QAM modulating

* Excellent RF output performance index, MER≥40db

* Support accurate PCR adjusting

* Support PSI/SI editing and inserting

* Support Web management, Updates via web

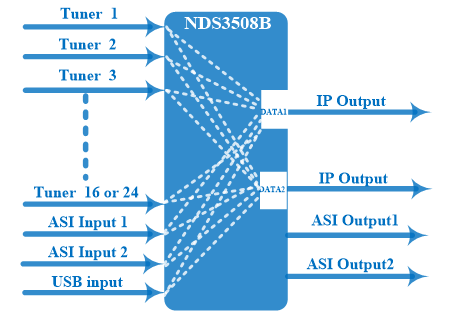

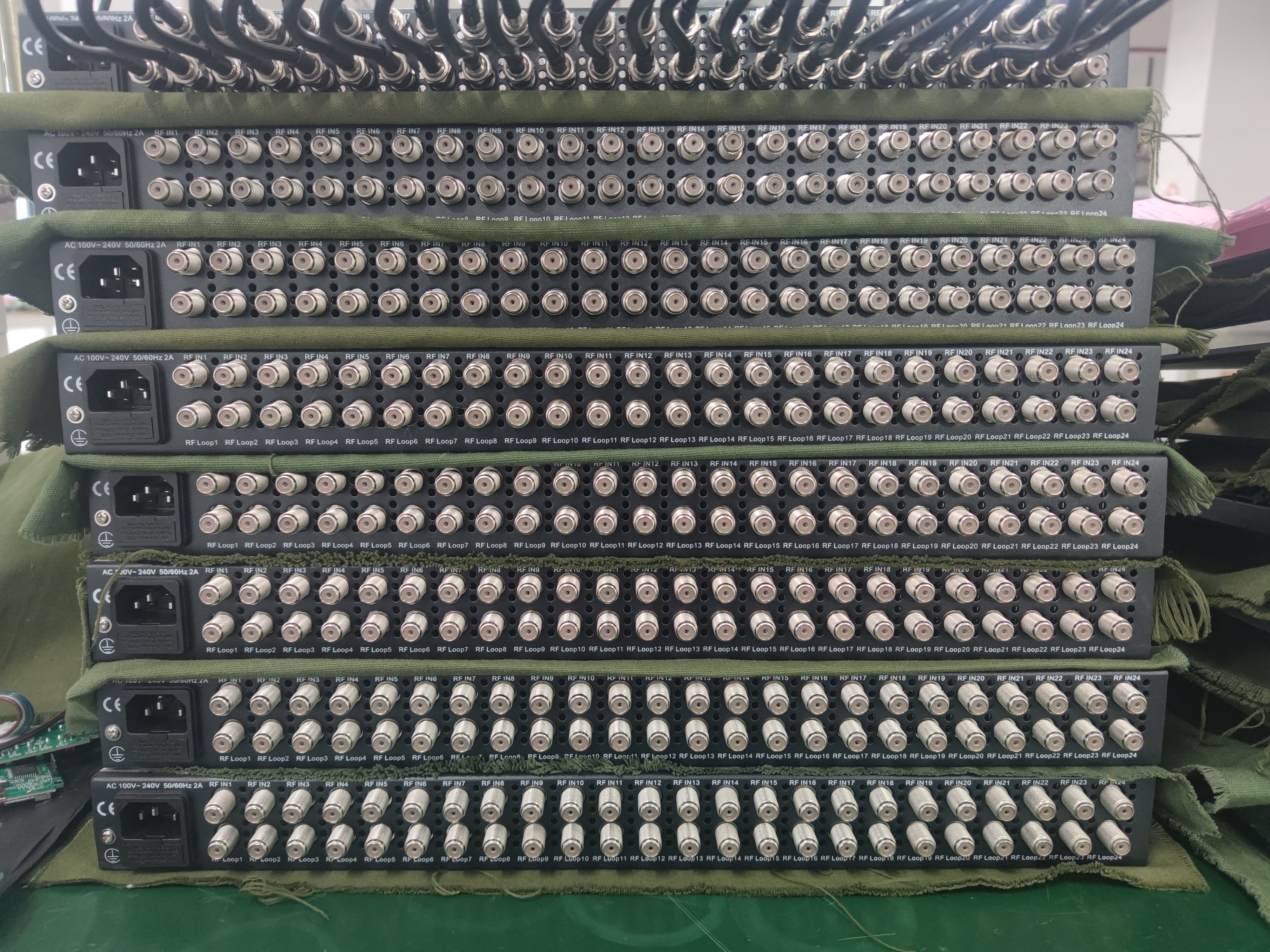

Working Principle

Specifications

Input	24 or 16 FTA DVB-S/-S2/-S2X Tuner inputs
	128 IP inputs over UDP and RTP protocol
	2 ASI inputs, BNC interface
	TS files input by playing ts via the USB disk (FAT 32)
	Tuner Option 1	DVB-S			Frequency In	950~2150MHz
					Symbol rate	0.5~45Msps
					Signal Strength	- 65~-25dBm
					FEC	1/2, 2/3, 3/4, 5/6, 7/8
					Constellation	QPSK
					Max input bitrate	≤120 Mbps
		DVB-S2			Frequency In	950~2150MHz
					Symbol rate	QPSK/8PSK /16APSK: 0.5~45 Msps 32APSK: 0.5~40Msps;
					FEC	QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10 16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 32APSK: 3/4, 4/5, 5/6, 8/9, 9/10
					Constellation	QPSK, 8PSK, 16APSK, 32APSK
					Max input bitrate	≤120 Mbps
		DVB-S2X			Frequency In	950-2150MHz
					Symbol rate	QPSK/8PSK /16APSK: 0.5~45 Msps 8APSK/32APSK: 0.5~40Msps
					FEC	QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10, 13/45, 9/20, 11/20 8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10 8APSK: 5/9-L, 26/45-L 16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10, 1/2-L, 8/15-L, 5/9-L, 26/45, 3/5, 3/5-L, 28/45, 23/36 , 2/3-L, 25/36, 13/18, 7/9, 77/90 32APSK: 3/4, 4/5, 5/6, 8/9, 9/10, 2/3-L, 32/45, 11/15, 7/9
					Constellation	QPSK, 8PSK, 8APSK, 16APSK, 32APSK
					Max input bitrate	≤120 Mbps
	Tuner Option 2	DVB-C			Standard	J.83A(DVB-C), J.83B, J.83C
					Frequency In	60~890MHz
					Constellation	16/32/64/128/256 QAM
		DVB-T/T2			Frequency In	60~890MHz
					Bandwidth	6/7/8 M bandwidth
		ISDB-T			Frequency In	60~890MHz
Multiplexing	Maximum PID Remapping		256 output per channel
	Function		PID remapping (automatically or manually)
			A/V PID filtering
			Accurate PCR adjusting
			Generate PSI/SI table automatically
Modulation	Standard		EN300 744
	FFT		2K 4K 8K
	Bandwidth		6M, 7M, 8M
	Constellation		QPSK, 16QAM, 64QAM
	Guard interval		1/4, 1/8, 1/16, 1/32
	FEC		1/2, 2/3, 3/4, 5/6, 7/8
	MER		≥42 dB
	RF out		8 non-adjacent carrier output
	RF frequency		50~960MHz
	RF output level		-20~+10dBm, 0.1dB step
Stream out	8 DVB-T RF output (F type interface)
	8 IP (MPTS) output over UDP and RTP/RTSP (DATA2, as mirror of carriers) 2 ASI outputs (2 TS as mirror)
System	Network management (WEB)
	Chinese and English language
	Ethernet software upgrade
General	Dimension(WDH)			482mm×270mm×44mm
	Temperature			0~45℃(Operation) ; -20~80℃(Storage)
	Power			AC 100V±1050/60Hz; AC 220V±10%, 50/60HZ

Major Technical Comparison

NDS3394T	v1	v2	v3
LCD/KEY Feature	NO	NO	Yes
ASI inputs	2	1	2
ASI outputs	NO	2 for one TS	2 for two TS
Tuner inputs	16	16 or 24	16 or 24
RF loop out	Yes	No	Yes
IP outputs	1 MPTS output	8 MPTS output	8 MPTS output
USB	N/A	Playing TS	Playing TS
DATA Ports	IP inputs/outputs via GE1	IP inputs via DATA 1 IP outputs via DATA 2	IP inputs via DATA 1 IP outputs via DATA2
