8 channel HDMI Live streaming encoder iptv encoder support http m3u8 HLS rtmp rtsp srt udp rtp protocol

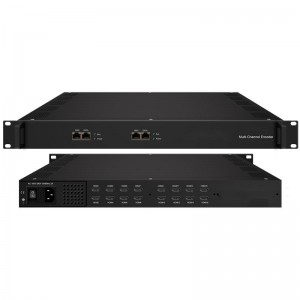

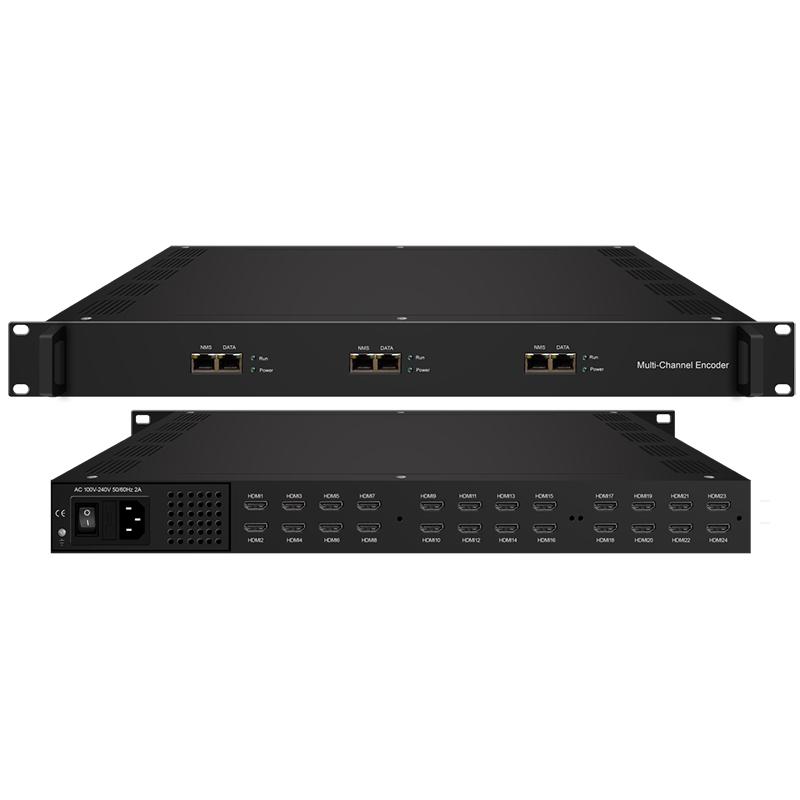

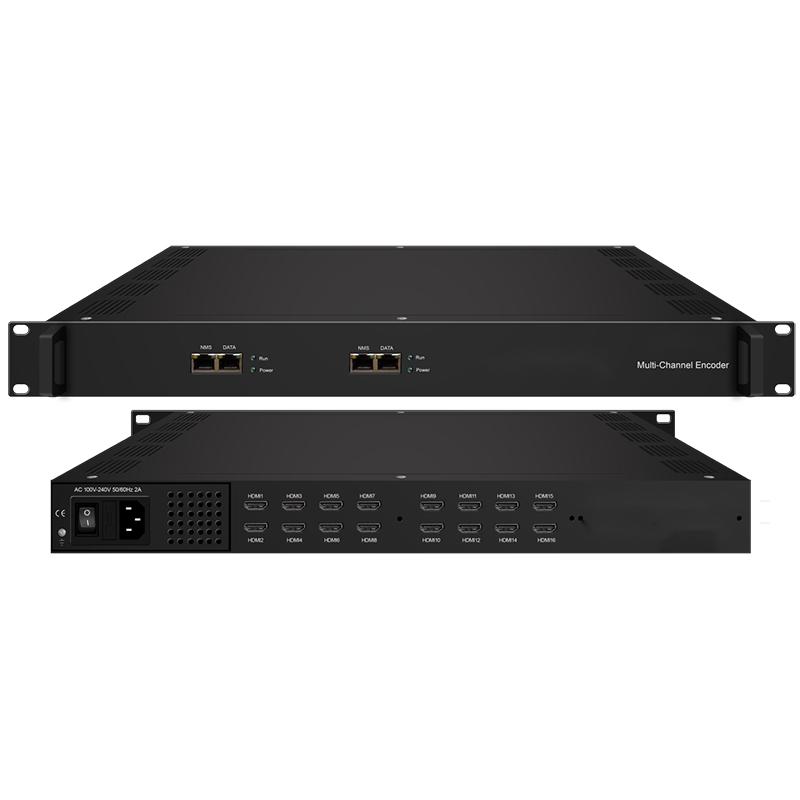

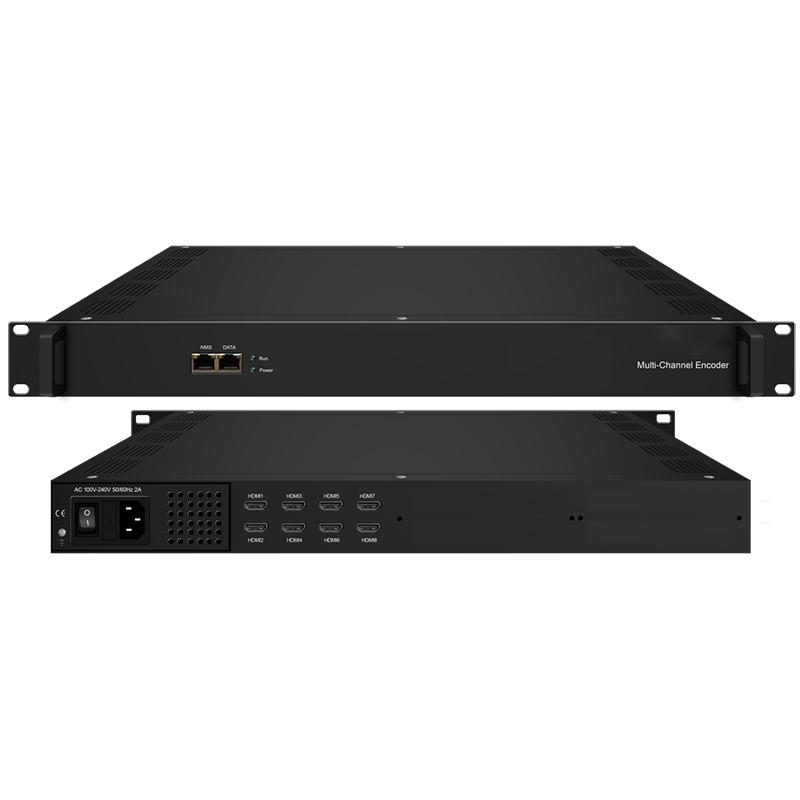

4 8 16 24 Channel HDMI Live Streaming Encoder

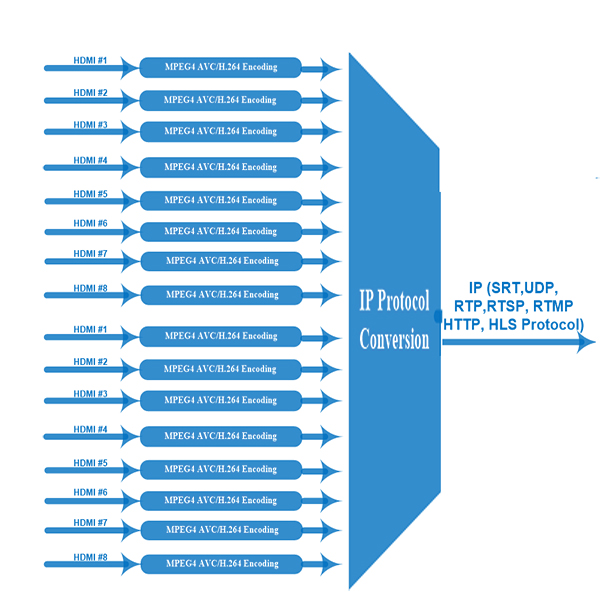

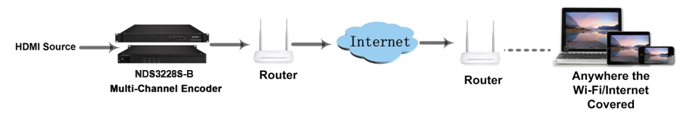

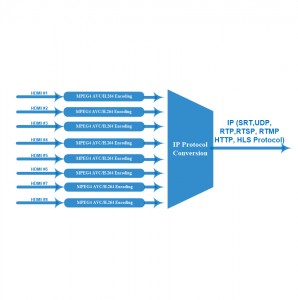

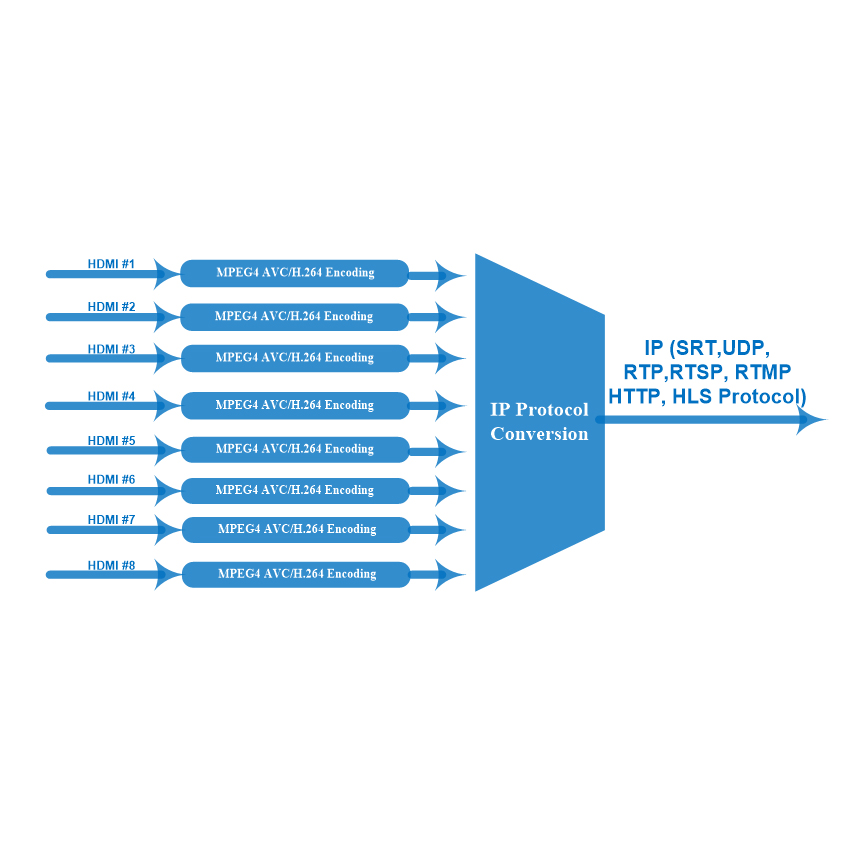

NDS3228S-N network encoder is an encoding device for IP broadcasting. It is equipped with 4/8/16/24 HDMI channels input with H265/MPEG-4 AVC/H.264 video encoding and LC-AAC or HE-AAC audio encoding. The signals source could be from STB, PC, TV and etc. It can transfer the live program through the internet/LAN, and gives IP out over UDP (Unicast/Multicast), SRT, RTSP, RTMP, HTTP and HLS, and the output signals are to be received by PC, phone and other mobile terminals. NDS3228S-N lets you access your IP STB, PC or TV anywhere to watch your programs.
Key Features
Support 4/8/16/24 HDMI inputs, with4/ 8/16/24 SPTS output (each encoder module, only support STPS, NO MPTS), max 24 HDMI inputs
l H265/ MPEG4 AVC/H.264 video encoding format
l MPEG1 Layer II, LC-AAC，HE-AAC audio encoding format and AC3 Pass Through, and audio gain adjustment
l Support IP Output over UDP (Unicast/Multicast), SRT, RTSP, RTP, RTMP, HTTP and HLS
l Support QR code, LOGO, caption insertion (Language Supported: 中文, English, العربية, ไทย, हिन्दी, руская, اردو for more languages please consult us…)
l Support “Null PKT Filter” function
l Control via web management, and easy updates via web
