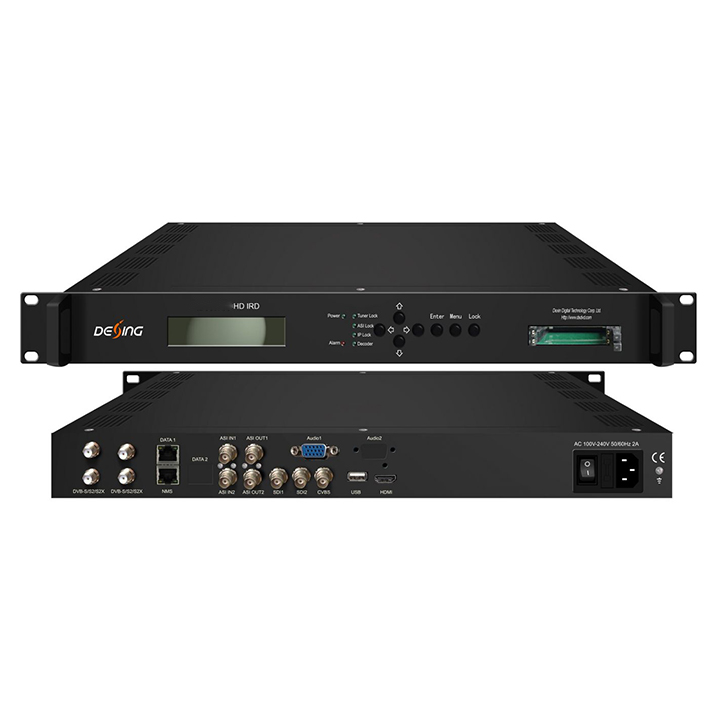

HD IRD DVB-S/S2X/C/ Input SDI HDMI IP ASI Receiver
Key Features
* Demodulator + descrambler +re-mux+ decoder in one box
* 1 or 2 Tuner inputs (DVB-C/T/S/S2/S2X/ATSC-T/ISDB-T optional) for option
* 2 ASI & 16 IP UDP/RTP input for re-mux
* Support 1ch HDMI/CVBS/3G-SDI video out (SDI1 and SDI2 mirrored out)
* Support 1ch or 2ch Audios out for option
* Support HD/SD MPEG2, MPEG4 AVC/H.264, HEVC/H.265 and AVS/AVS+ decoding
* Support MPEG 1 Layer II, LC-AAC, HE-AAC, HE-AAC V2, Dolby Digital/Dolby Digital Plus decoding and AC3 passthrough
* IP (1 *MPTS & 16* SPTS) output over UDP and RTP/RTSP; 2 ASI mirrored out as a copy of the IP MTPS
* Each CAM can decrypt multiple programs from Tuner/ASI/IP
* BISS descrambling (Up to 120Mbps)
* Support CC (EIA608, EIA708) & Teletext (Applicable for SDI port)
* Support maximum 128 PID mapping per input
* LCD/Keyboard and web-based NMS management
* Updates via web

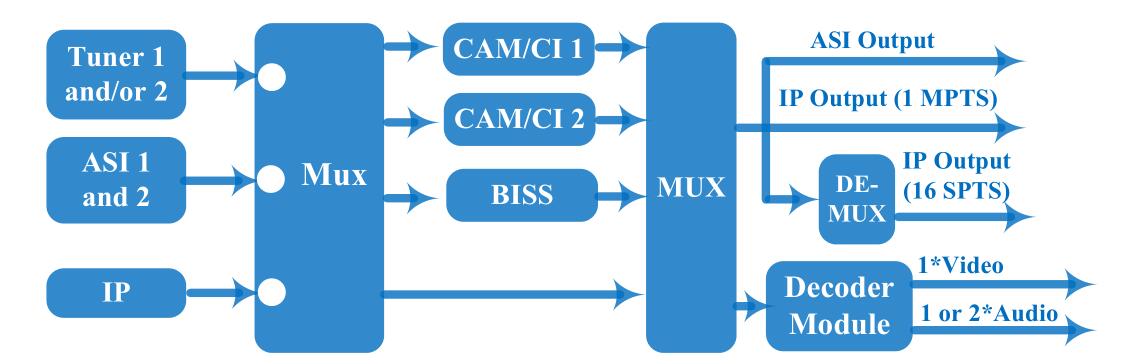

Principle Chart
Technical Specifications
| Input | 1 or 2 *Tuner for option, F type, (DVB-C/T/S/S2/S2X/ATSC-T/ISDB-T optional as per order)
2*ASI input for re-mux, BNC interface 16*IP input for re-mux (UDP/RTP), RJ45 |
||||||
| Tuner Section |
Multi-mode tuners switchable |
Cable | Input Frequency | 60~890 MHz | |||
| Standard | DVB-C/J.83A, J.83C | J.83B | |||||
| Constellation | 16/32/64/128/256 QAM | 64/256 QAM | |||||
| Symbol rate | 1.0~7.0Msps | ||||||
| DVB-T | Input Frequency | 60~890 MHz | |||||
| Constellation | QPSK, 16QAM, 64QAM | ||||||
| Bandwidth | 6/7/8 M | ||||||
| ISDB-T | Input Frequency | 60~890 MHz | |||||
| Constellation | DQPSK, QPSK, 16QAM, 64QAM | ||||||
|
Satellite |
DVB-S | Input Frequency | 950~2150MHz | ||||
| Symbol rate | 0.5~45Msps | ||||||
| Signal Strength | - 65- -25dBm | ||||||
| FEC | 1/2, 2/3, 3/4, 5/6, 7/8 | ||||||
| Constellation | QPSK | ||||||
| DVB-S2 | Input Frequency | 950~2150MHz | |||||
| Symbol rate | QPSK/8PSK/16APSK: 0.5~45Msps
32APSK: 0.5~40Msps; |
||||||
| FEC | QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10 16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 32APSK: 3/4, 4/5, 5/6, 8/9, 9/10 | ||||||
| Constellation | QPSK, 8PSK, 16APSK, 32APSK | ||||||
| DVB-S2X | Input Frequency | 950~2150MHz | |||||
| Symbol rate | QPSK/8PSK/16APSK: 0.5~45Msps
8APSK/32APSK: 0.5~40Msps |
||||||
| FEC | QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10, 13/45, 9/20, 11/20
8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10 8APSK: 5/9-L, 26/45-L 16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10, 1/2-L, 8/15-L, 5/9-L, 26/45, 3/5, 3/5-L, 28/45, 23/36 , 2/3-L, 25/36, 13/18, 7/9, 77/90 32APSK: 3/4, 4/5, 5/6, 8/9, 2/3-L, 32/45, 11/15, 7/9 |
||||||
| Constellation | QPSK, 8PSK, 8APSK, 16APSK, 32APSK | ||||||
|
ATSC |
ATSC | Input Frequency | 54~858MHz | ||||
| Bandwidth | 6M | ||||||
| Constellation | 8VSB | ||||||
| Descrambling | CAM/CI Qty | 2 | |||||
| BISS Mode | Mode 1, Mode E (up to 120Mbps) | ||||||
| Output | IP (1*MPTS & 16*SPTS) out over UDP, RTP/RTSP.
1000Base-T Ethernet interface (unicast / multicast) |
||||||
| 2×ASI mirrored out, BNC interface | |||||||
| Decode Output | Video | Interface: 1* CVBS/HDMI/3G-SDI (SDI1 and SDI2 mirrored out) | |||||
| Decode: MPEG-2, MPEG4 AVC/H.264, HEVC/H.265 and AVS/AVS+ | |||||||
| Resolution:1920×1080_60p, 1920×1080_60i, 1920×1080_50p; 1920×1080_50i; 1280×720_60P, 1280×720_50P; 480i, 576i | |||||||
| Chroma: 4:2:0 | |||||||
| Audio | Interface: HDMI, SDI, DB15 to (XRL, RCA, AES, S/PDIF） | ||||||
| Number of channels: 1 or 2 for option (as per order) | |||||||
| Decode: MPEG 1 Layer II, LC-AAC, HE-AAC, HE-AAC V2, Dolby Digital/ Dolby Digital Plus | |||||||
| Audio Output Mode: Left, Right, Stereo audio | |||||||
| System | Local interface | LCD + control buttons | |||||
| Remote management | Web-server Management | ||||||
| Language | English | ||||||
| Upgrade | USB, web management | ||||||
| Miscellaneous | Dimension | 482*300*44.5mm (W×L×H) | |||||
| Approx weight | 3.5kg | ||||||
| Environment | 0~45℃(work)；-20~80℃（Storage） | ||||||
| Power requirements | 100~240VAC, 50/60Hz | ||||||
| Power consumption | 20W | ||||||
