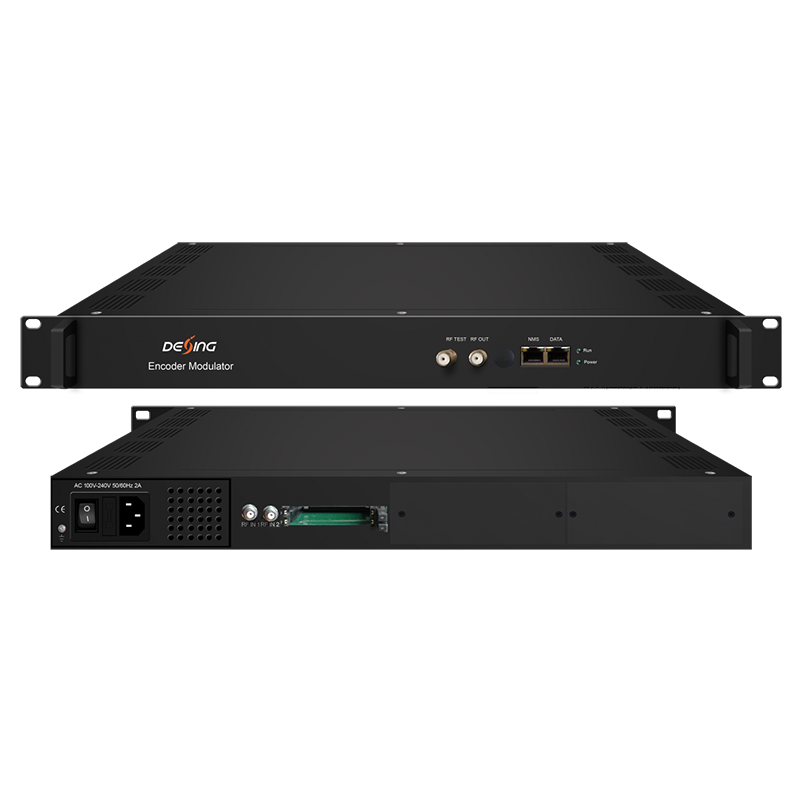

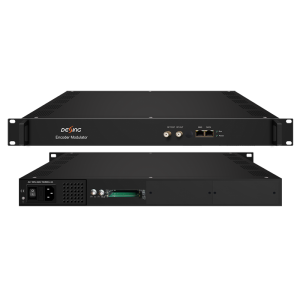

DVB-S/S2/S2X To DVB-T Modulator NDS3902M DVB-T TransModulator

Short Description:

Send email to us

Product Detail

Product Tags

DVB-S/S2/S2X To DVB-T NDS3902M DVB-T TransModulator

* *DVB-S/S2/S2X Tuner input with 2 CAM slots

* 2 groups multiplexing +2 groups DVB-T modulating

* Support accurate PCR adjusting, PID Remapping, PSI/SI rebuilding and editing, A/V PID filtering

* Web-based NMS management

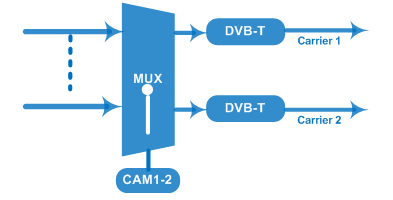

Principle Chart

Tech Specifications

Input	2 DVB-S/S2/S2X Tuners
Tuner Section	DVB-S/S2/S2X Tuner	DVB-S	Input Frequency		950~2150MHz
			Symbol rate		0.5~45Msps
			Signal Strength		- 65- -25dBm
			FEC		1/2, 2/3, 3/4, 5/6, 7/8
			Constellation		QPSK
			Max input bitrate		≤129 Mbps
		DVB-S2	Input Frequency		950~2150MHz
			Symbol rate		QPSK/8PSK /16APSK: 0.5~45 Msps 32APSK: 0.5~40Msps;
			FEC		QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10 16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 32APSK: 3/4, 4/5, 5/6, 8/9, 9/10
			Constellation		QPSK, 8PSK, 16APSK, 32APSK
			Max input bitrate		≤129 Mbps
		DVB-S2X	Input Frequency		950~2150MHz
			Symbol rate		QPSK/8PSK /16APSK: 0.5~45 Msps 8APSK: 0.5~40Msps 32APSK: 0.5~40Msps
			FEC		QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10, 13/45, 9/20, 11/20 8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10 8APSK: 5/9-L, 26/45-L 16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10, 1/2-L, 8/15-L, 5/9-L, 26/45, 3/5, 3/5-L, 28/45, 23/36, 2/3-L, 25/36, 13/18, 7/9, 77/90 32APSK: 3/4, 4/5, 5/6, 8/9, 2/3-L, 32/45, 11/15, 7/9
			Constellation		QPSK, 8PSK, 8APSK, 16APSK, 32APSK
			Max input bitrate		≤129 Mbps
Descrambling	CAM/CI		2 sets
Multiplexing	Maximum PID Remapping		256 per input channel
	Function		A/V PID filtering
			PID Remapping
			Accurate PCR adjusting
			Generate PSI/SI table automatically
Modulation	DVB-T		Standard	EN300744
			FFT mode	2K
			Bandwidth	6M, 7M, 8M
			Constellation	QPSK, 16QAM, 64QAM
			Guard Interval	1/4, 1/8, 1/16, 1/32
			Code Rate	1/2, 2/3, 3/4, 5/6, 7/8
			MER	≥42 dB
			RF frequency	50~960MHz, 1KHz step
			RF out	2*DVB-T non-adjacent carriers combined output
			RF output level	-28~ -3 dBm (79~104 dbµV), 0.1db step
System	Web-based NMS support
	Ethernet software upgrading
General	Temperature		0~45℃(Operation) ; -20~80℃(Storage)
	Power		AC 100V±1050/60Hz; AC 220V±10%, 50/60HZ
