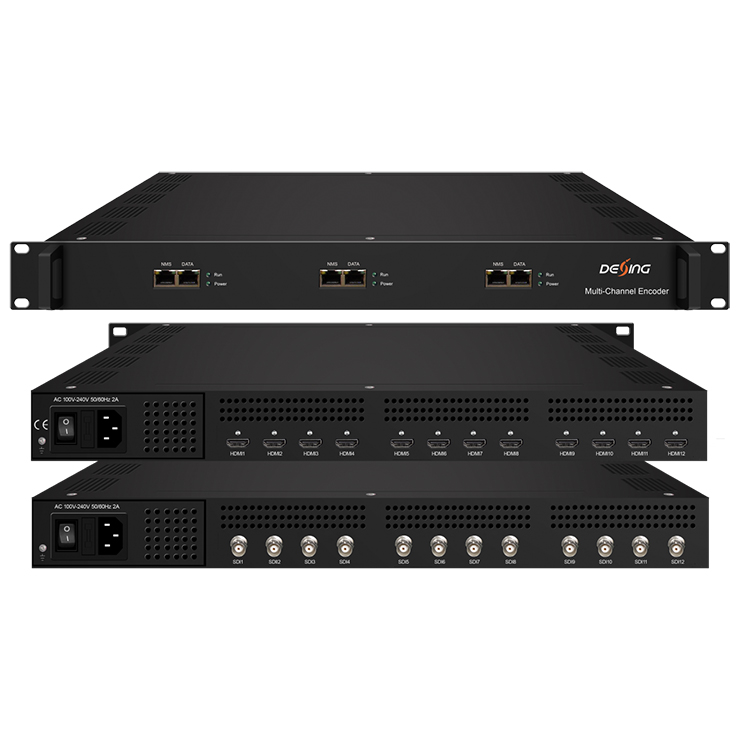

DX3224H(DX3224HV) Multi-channel Encoder
Short Description:
DX3224H(DX3224HV) Multi-channel Encoder
Technical Specification
| Input | 4/8/12×HD-SDI or HDMI(1.4) input for option, HDCP 1.4 | ||||
| Video Encoding | Encoding Format | HEVC/ H.265, MPEG 4 AVC/H.264 | |||
|
Resolution (DX3224HV) |
Input |
Output |
|||
|
HEVC/H.265 |
MPEG-4 AVC/H.264 |
||||
| 4*1080P-50 | 4*1080P-50 | 4*1080P-25
2*1080P-50 |
|||
| 4*1080P-60/59.94 | 4*1080P-60,
4*1080P-59.94 |
4*1080P-30
4*1080P-29.97 2*1080P-60 2*1080P-59.94 |
|||
| 4*1080I-50 | 4*1080P-50,
4*1080P-25 |
4*1080I-50
4*1080P-25 2*1080P-50 |
|||
| 4*1080I-60/59.94 | 4*1080P-60,
4*1080P-30 |
4*1080I-60
4*1080P-30 2*1080P-60 |
|||
| 4*720P-50 | 4*720P-50 | 4*720P-50 | |||
| 4*720P-60/59.94 | 4*720P-60,
4*720P-59.94 |
4*720P-60
4*720P-59.94 |
|||
|
Resolution (DX3224H) |
Output |
||||
| Input |
HEVC/H.265 |
MPEG-4 AVC/H.264 |
|||
| 4*1080P-50 | 4*1080P-50 | 4*1080P-50 | |||
| 4*1080P-60/59.94 | 4*1080P-60,
4*1080P-59.94 |
4*1080P-60
4*1080P-59.94 |
|||
| 4*1080I-50 | 4*1080P-50,
4*1080P-25 |
4*1080P-25
4*1080P-50 4*1080I-50 |
|||
| 4*1080I-60/59.94 | 4*1080P-60,
4*1080P-30 |
4*1080P-30
4*1080P-60 4*1080I-60 |
|||
| 4*720P-50 | 4*720P-50 | 4*720P-50 | |||
| 4*720P-60/59.94 | 4*720P-60,
4*720P-59.94 |
4*720P-60
4*720P-59.94 |
|||
| Chroma | 4:2:0 | ||||
| Bitrate
(per channel) |
0.5Mbps~20Mbps (HEVC/ H.265)
4 Mbps~20Mbps (MPEG 4 AVC/H.264) |
||||
| Rate Control | CBR/VBR | ||||
| GOP Structure | IBBP, IPPP | ||||
| Advanced Pretreatment | De-interlacing, Noise Reduction, Sharpening | ||||
| Audio Encoding | Encoding Format | MPEG-1 Layer 2, LC-AAC, HE-AAC, HE-AAC V2, AC3 Passthrough | |||
| Sampling rate | 48KHz | ||||
| Bit-rate
(each channel) |
48Kbps~384Kbps (MPEG-1 Layer 2 & LC-AAC)
24 Kbps~128 Kbps (HE-AAC) 18 Kbps~56 Kbps (HE-AAC V2) |
||||
| Audio Gain | 0~255 | ||||

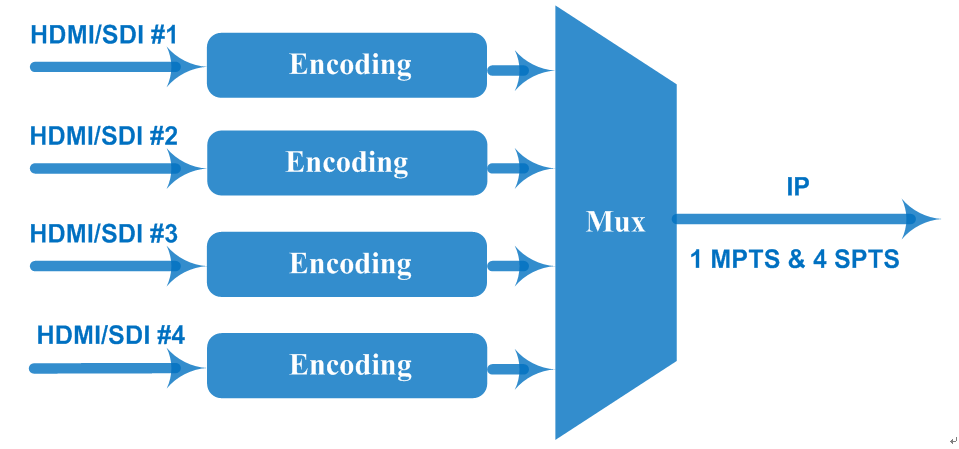

| Stream output | 1 MPTS and 4 SPTS output over UDP/RTP/RTSP per module, Base-T Ethernet interface (1000M/100M self-adaption) (unicast/ multicast)
IP null packet filterd |
||||
| System | Web based management | ||||
| Chinese-English control interface | |||||
| Ethernet software upgrade | |||||
| Miscellaneous | Dimension (W× L× H) | 482mm×328mm×44mm | |||
| Approx weight | 5kg | ||||
| Temperature | 0~45℃(work), -20~80℃（Storage） | ||||
| Power | AC 100V-220V±10%, 50/60Hz | ||||
Technical Comparison
|
NDS3224V-HDMI |
NDS3224V-SDI |
DX3224H |
DX3224HV |
||
|
Input Interface |
4/8/12*HDMI |
4/8/12*SDI |
4/8/12*HDMI/SDI |
4/8/12*HDMI/SDI |
|
|
Video Encoding |
H.265, H.264 |
H.265, H.264 |
H.265, H.264 |
H.265,H.264 |
|
|
Audio Encoding |
MPEG-1 Layer 2, LC-AAC, HE-AAC, HE-AAC V2, AC3 Passthrough |
||||
|
Input Resolution |
H.265 |
3840x2160P@30*2CHs 1920x1080P@50/60*4CHs 1280x720P@50/60*4CHs |
1920x1080P@50/60*4CHs 1280x720P@50/60*4CHs 1920x1080I@50/60*4CHs |
1920x1080P@50/60*4CHs 1920x1080I@50/60*4CHs 1280x720P@50/60*4CHs
|
4*1920×1080_60P/59.94P 4*1920×1080_50P 4*1920×1080_60i 4*1920×1080_50i 4*1280×720_60P 4*1280×720_50P |
| H.264 |
3840x2160P@30*1CH 1920x1080P@50/60*2CHs 1280x720P@50/60*4CHs |
1920x1080P@50/60*2CHs 1920x1080I@50/60*2CHs 1280x720P@50/60*4CHs |
4 or 2*1920×1080_60P/59.94P 4 or 2*1920×1080_50P 4 or 2*1920×1080_60i 4 or 2*1920×1080_50i 4*1280×720_60P 4*1280×720_50P |
||
|
Output Resolution |
H.265 |
Same as input resolution |
1920x1080P@50/60*4CHs 1280x720P@50/60*4CHs |
1920x1080P@50/60*4CHs 1280x720P@50/60*4CHs |
4*1920×1080_60P/59.94P 4*1920×1080_50P 4*1920×1080_30P 4*1920×1080_25P 4*1280×720_60P 4*1280×720_50P |
| H.264 |
1920x1080P@50/60*2CHs 1280x720P@50/60*4CHs |
2*1920×1080_60P/59.94P (HDMI 3 and HDMI 4) 2*1920×1080_50P (HDMI 3 and HDMI 4) 4*1920×1080_30P/29.97P 4*1920×1080_25P 4*1920×1080_60i 4*1920×1080_50i 4*1280×720_60P 4*1280×720_50P |
|||
|
OSD |
N/A |
N/A |
Optional as per order |
Optional as per order |
|
|
Caption Language |
N/A |
N/A |
Not support caption |
Not support caption |
|
| Note: “CH” means encoding channel, different encoding format can encode different channel with different resolution. | |||||
