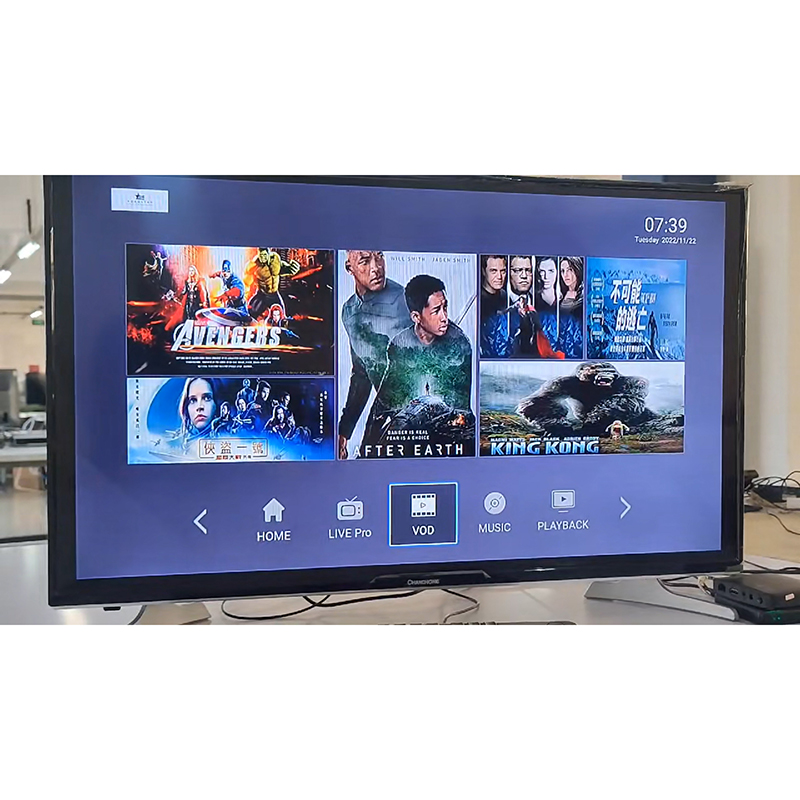

Hotel Iptv Solution Live Streaming service interactive vod Software

Short Description:

Hotel Iptv Solution Live Streaming service interactive Software

IPTV Gateway is a device which is used for the protocol conversion scenarios and streaming media distribution scenarios. It can convert the broadcast network IP stream over HTTP, UDP, RTP, RTSP and HLS and TS file into HTTP, UDP, HLS and RTMP protocol. The system can achieve the integration by receiving a variety of commercial streaming media services. Also, the system can provide streaming media services directly..


Product Detail

Product Tags

Main Features

*  8 Data ports ( NDS3508F/NDS3508F-M) :

First Data port: IP out over HTTP, UDP (SPTS), HLS and RTMP

Data CH1-7 ports: IP in over HTTP, UDP (SPTS), RTP (SPTS), RTSP and HLS

IP out over HTTP, HLS and RTMP (Unicast)

 10 Data ports ( NDS3508F-10) :

First Data port: IP out over HTTP, UDP (SPTS), HLS and RTMP

Data CH1-9 ports: IP in over HTTP, UDP (SPTS), RTP (SPTS), RTSP and HLS

IP out over HTTP, HLS and RTMP (Unicast)

Support TS files uploading through Web management

Support IP anti- jitter function

Support adding scrolling caption, welcome words, boot image and boot video (this function is only applicable to IP out application and the STB/Android TV must be installed Dexin IPTV APK)

Support downloading Dexin IPTV APK directly from this device

Support about 80 HD/SD programs (Bitrate:2Mbps) When HTTP/RTP/RTSP/HLS is converted into UDP (Multicast),the actual application shall prevail, and suggest maximum 80% CPU utilization

Support program playing with APK downloaded android STB and TV, maximum 150 terminals

* Control via web-based NMS management through DATA port

 IP Protocol Conversion

udp rtp hls http rtsp rtmp

General Principle Chart

3EEECN_20181206092826

Specifications

 Input

IP input thru CH 1-7(1000M) over HTTP, UDP(SPTS), RTP(SPTS), RTSP (over UDP, payload: mpeg TS) and HLS( NDS3508F/NDS3508F-M)

IP input thru CH 1-7(1000M) over HTTP, UDP(SPTS), RTP(SPTS), RTSP (over UDP, payload: mpeg TS) and HLS( NDS3508F-10)

TS files uploading through Web management

IP output

IP out thru Data port (1000M) over HTTP (Unicast), UDP(SPTS, Multicast) HLS and RTMP (Program source should be H.264 and AAC encoding)

IP out thru CH 1-7(1000M) over HTTP/ HLS/RTMP (Unicast)(NDS3508F/NDS3508F-M); IP out thru CH 1-7(1000M) over HTTP/ HLS/RTMP (Unicast)(NDS3508F-10)

System

CPU: NDS3508F(1037)/NDS3508F-M(I7)

NDS3508F-10( Celeron 3965)

Memory: 4G
Solid-State Disk (SSD): 16G (60G optional)
Channel switching time with DEXIN’ STB: HTTP (1-3s), HLS (0.4-0.7s)
Support adding scrolling caption, welcome words, boot image and boot video (this function is only applicable to IP out application and the STB/Android TV must be installed Dexin IPTV APK)
Play programs with APK downloaded android STB and TV, maximum 150 terminals(See details in below Test data for reference)
Support about 80 HD/SD programs (Bitrate: 2Mbps) When HTTP/RTP/RTSP/HLS is converted into UDP (Multicast), the actual application shall prevail, and suggest maximum 80% CPU utilization
web-based NMS management thru DATA port

General

Demission 482mm×324mm×44mm (WxLxH)
Temperature 0~45℃(operation), -20~80℃(storage)
Power Supply AC 100V±10%, 50/60Hz or AC 220V±10%, 50/60Hz

Application:

Maximum 200 Terminals solution

3EEECN_20181126015207

Head-end devices:

Data Source

Function

Mark

NDS3508B Tuner to IP Gateway

Receiving FTA Programs

Input: 16 tuner, 2ASI

Output: IP (16 MPTS or 512 SPTS)

NDS3585 4 in 1 IRD

Decrypting programs

Input:4 RF, 1ASI, 4IP

Output: IP (48 SPTS and 4 MPTS), 4ASI

Support descramble programs through 4 CAMs/CIs

NDS3224V HEVC/H.265 HD Encoder

HDMI HD Programs

Input: 4/8/12×HDMI

Output: IP (1 MPTS and 4/8/12 SPTS)

Support H.265/HEVC, H.264/AVC Encoding

NDS3508F IPTV Gateway

Converting protocol

Input: 7 channels IP over UDP

Output: 1channel IP over HTTP

Receiving devices:

Data Source Function Mark
NDS3508F IPTV Gateway

As a receiver to receive programs from public Network

Input IP protocol: HTTP

Output IP protocol: UDP

Support about 80 HD/SD programs (Bitrate: 2Mbps), suggest maximum 80% CPU utilization

NDS3508F IPTV Gateway As a server Input IP protocol: UDP

Output IP protocol: HTTP/HLS

maximum 250 terminals

Terminal devices:

Terminal Type Mark
Android STB with APK Support HTTP&HLS protocol

Support Dexin APK configuration

Android TVs with APK Support HTTP&HLS protocol

Support Dexin APK configuration

Support self-start Dexin APK when TV is on

Total device number:

Head-end device Device Number
NDS3508B Tuner to IP Gateway 1
NDS3585 4 in 1 IRD 1
NDS3224V HEVC/H.265 HD Encoder 1
NDS3508F IPTV Gateway 1
Receiving device NDS3508F IPTV Gateway 2
Terminal device Android STB with APK/ Android TVs with APK maximum 250



3EEECN_20181126015220

Head-end devices:

Data Source Function Mark

NDS3508B Tuner to IP Gateway

Receiving FTA Programs Input: 16 tuner, 2ASI

Output: IP (16 MPTS or 512 SPTS)

NDS3585 4 in 1 IRD Decrypting  programs Input:4 RF, 1ASI, 4IP

Output: IP (48 SPTS and 4 MPTS), 4ASI

Support descramble programs through 4 CAMs/CIs

NDS3224V HEVC/H.265 HD Encoder HDMI HD Programs Input: 4/8/12×HDMI

Output: IP (1 MPTS and 4/8/12 SPTS)

Support H.265/HEVC, H.264/AVC Encoding

NDS3508F IPTV Gateway Converting protocol Input: 7 channels IP over UDP

Output: 1channel IP over HTTP

Receiving devices:

Data Source Function Mark
NDS3508F IPTV Gateway As a receiver and a server, please view the following data for reference.

Protocol conversion Programs Bitrate Terminals
HTTP to HTTP 30 2Mbps 150
50 2Mbps 80
HTTP to HLS 50 2Mbps 200



Input IP protocol: HTTP

Output IP protocol: HTTP/HLS

Terminal devices:

Terminal Type Mark
Android STB with APK Support HTTP&HLS protocol

Support Dexin APK configuration

Android TVs with APK Support HTTP&HLS protocol

Support Dexin APK configuration

Support self-start Dexin APK when TV is on

Total device number:

Head-end device Device Number
NDS3508B Tuner to IP Gateway 1
NDS3585 4 in 1 IRD 1
NDS3224V HEVC/H.265 HD Encoder 1
NDS3508F IPTV Gateway 1
Receiving device NDS3508F IPTV Gateway 1
Terminal device Android STB with APK/ Android TV with APK

According to NDS3508F’s CPU utilization after receiving programs.



The number of terminals according to the cloud server

3EEECN_20181126015235

Head-end devices:

Data Source Function Mark
NDS3508B Tuner to IP Gateway

Receiving FTA Programs

Input: 16 tuner, 2ASI

Output: IP(16 MPTS or 512 SPTS)

NDS3585 4 in 1 IRD Decrypting programs Input:4 RF, 1ASI, 4IP

Output: IP (48 SPTS and 4 MPTS), 4ASI

Support descramble programs through 4 CAMs/CIs

NDS3224V HEVC/H.265 HD Encoder HDMI HD Programs Input: 4/8/12×HDMI

Output: IP (1 MPTS and 4/8/12 SPTS)

Support H.265/HEVC, H.264/AVC Encoding

NDS3508F IPTV Gateway Converting protocol Input: 7 channels IP over UDP

Output: 1channel IP over HTTP and HLS

Receiving devices:

Data Source Function Mark
Cloud Server Receiving and store programs and as a server Input IP protocol: HTTP/HLS

Output IP protocol: HTTP/HLS

Support Dexin OTT software configuration

Terminal devices:

Terminal Type Mark
Android STB with APK Support HTTP&HLS protocol

Support Dexin APK configuration

Android TV with APK Support HTTP&HLS protocol

Support Dexin APK configuration

Support self-start Dexin APK when TV is on

Mobile Phone or Tablet PC Installing Dexin OTT APP

Total device number:

Head-end device Device Number
NDS3508B Tuner to IP Gateway 1
NDS3585 4 in 1 IRD 1
NDS3224V HEVC/H.265 HD Encoder 1
NDS3508F IPTV Gateway 1
Receiving device Cloud Server 1
Terminal device Android STB with APK/ Android TV with APK/ Mobile Phone or Tablet PC with Dexin OTT APP The number of terminals according to the cloud server



Test data for reference:

Protocol conversion

Programs

Bitrate

Terminals

CPU utilization

NDS3508F/

NDS3508F-10

NDS3508F-M

HTTP/RTP/RTSP/HLS to UDP

80

2M

55%

HTTP to HTTP

30

2M

150

300

80%

50

2M

80

160

80%

HTTP to HLS

50

2M

200

400

46%

UDP to HLS

50

2M

200

400

50%

80

2M

150

300

72%

UDP to HTTP

50

2M

120

240

50%

Order Guide:
Feature Memory CPU Solid-State Disk(SSD) Mechanical Hard Disk
NDS3508F Gateway 4G 1037 60G ×
NDS3508F-10 Gateway 4G Celeron 3965 60G ×
NDS3508F-M Gateway 4G i7 60G ×
NDS3508S-M Gateway 5G i7 80G 4T
NDS3508S-I Gateway 8 i7 80G 4T
NDS3508I Gateway 8 i7 80G 4T
