ip to ip convert

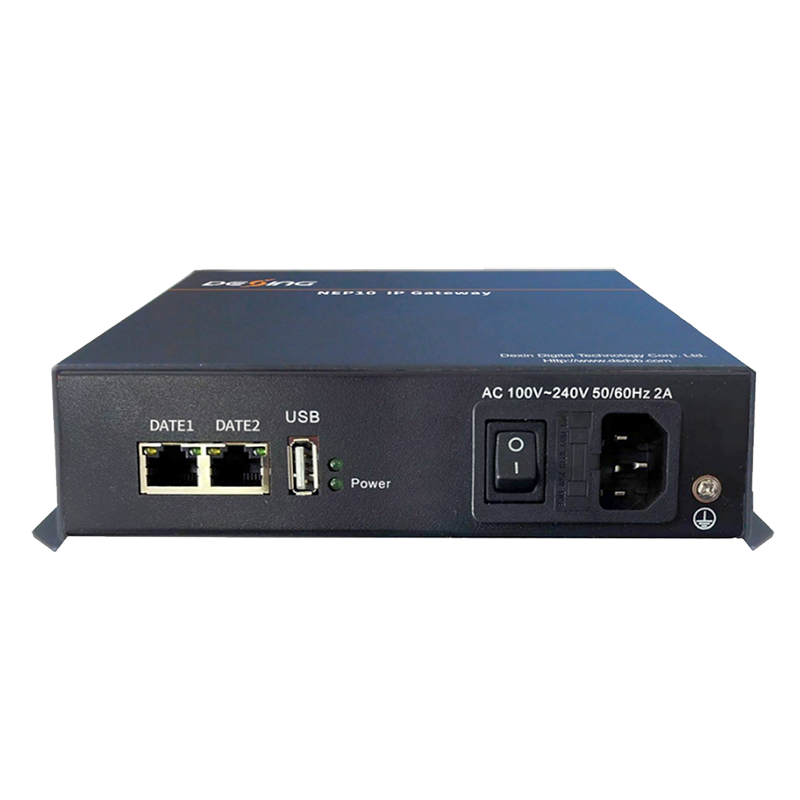

Dexin NEP 10 IP Gateway is a device which is used for the protocol conversion scenarios and streaming media distribution scenarios. It can convert the broadcast network IP stream over SRT, HTTP,UDP, RTP, RTSP and HLS protocol. The system can achieve the integration by receiving a variety of commercial streaming media services. Also, the system can provide streaming media services directly.
Key Features
• 2 Data ports for input/output
Data ports: IP in over HTTP, UDP (SPTS), RTP (SPTS), RTSP and HLS
IP out over SRT, HTTP, HLS RTP/RTSP and RTMP (Unicast)
• Support IP anti-jitter function
• Support about 8-12 HD/SD programs (Bitrate:8Mbps) When SRT/HTTP/RTP/RTSP/HLS is
All the specifications are subject to change without any further notice. All rights reserved.
converted into UDP (Multicast)
• Control via web-based NMS management through DATA port

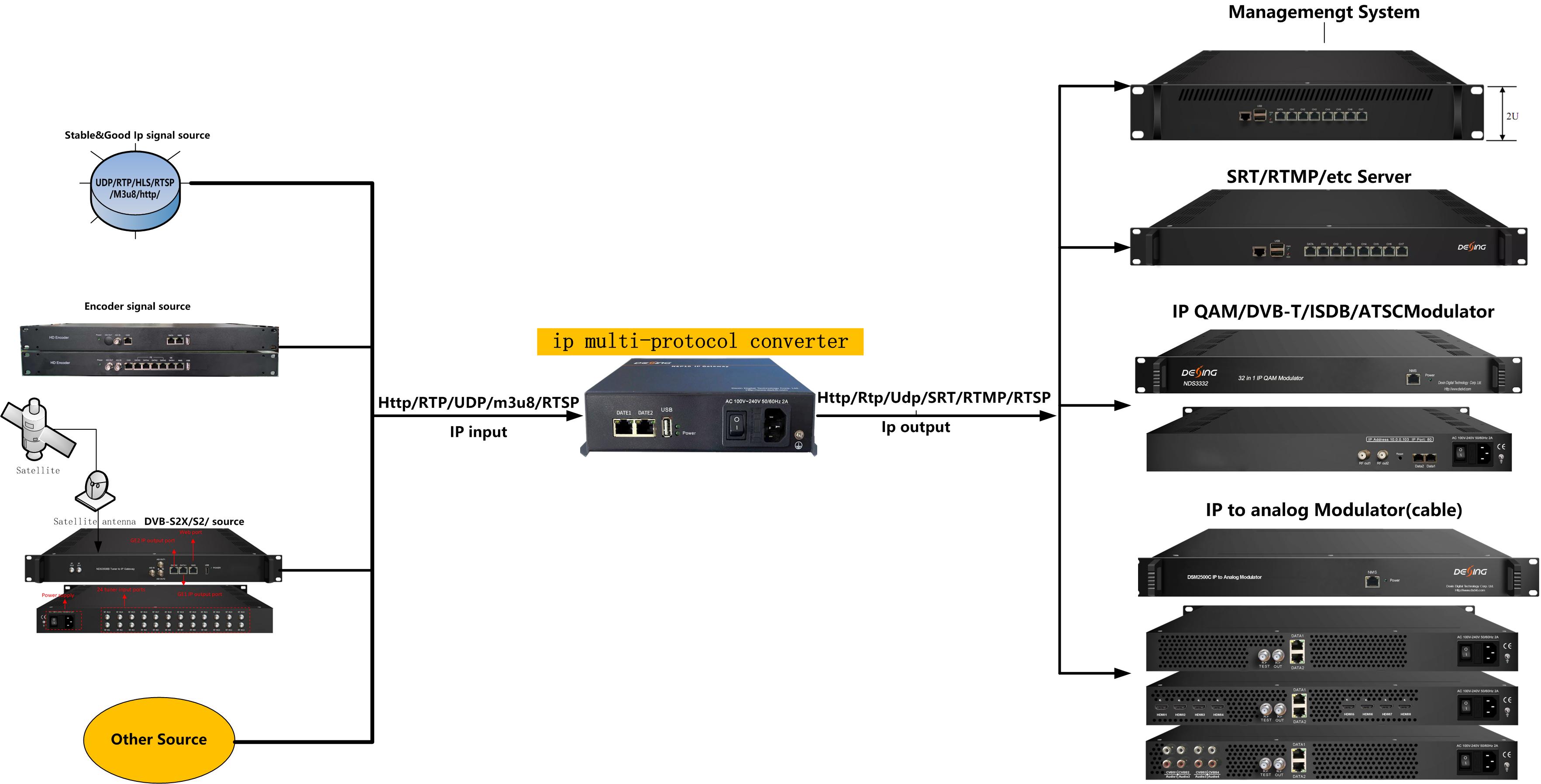

IP Protocol Conversion
Specifications
| Input |
IP input through DATA1/DATA2 (1000M) over HTTP, UDP(SPTS), RTP(SPTS), RTSP and HLS. |
| IP output |
IP out through DATA 1 /DATA2 (1000M) over SRT(Multicast), HTTP (Unicast), UDP(SPTS, Multicast) HLS and RTMP(Program source should be H.264 and AAC encoding) |
| System |
Support about 8-12 HD/SD programs (Bitrate :8Mbps) When HTTP/RTP/RTSP/HLS is converted into UDP (Multicast) |
All the specifications are subject to change without any further notice. All rights reserved
| Web-based NMS management through DATA port | ||
| General | Demission | 180mmx 110mmx40mm (WxLxH) |
| Temperature | 0-45 °C (operation), -20〜80 °C (storage) | |
| Power Supply | AC100V±10%, 50/60Hz or AC 220V±10%, 50/60Hz | |
Test data for reference:
|
Protocol conversion |
Bit-Rate |
Programs |
|
UDPto SRT/HTTP/RTP/RTSP/HLS/RTMP |
3Mbps |
20 |
|
UDP to SRT |
8Mbps |
10 |
|
UDP to HTTP |
12 |
|
|
UDP to RTP/RTSP |
12 |
|
|
UDP to RTMP |
12 |
|
|
UDP to HLS |
12 |
