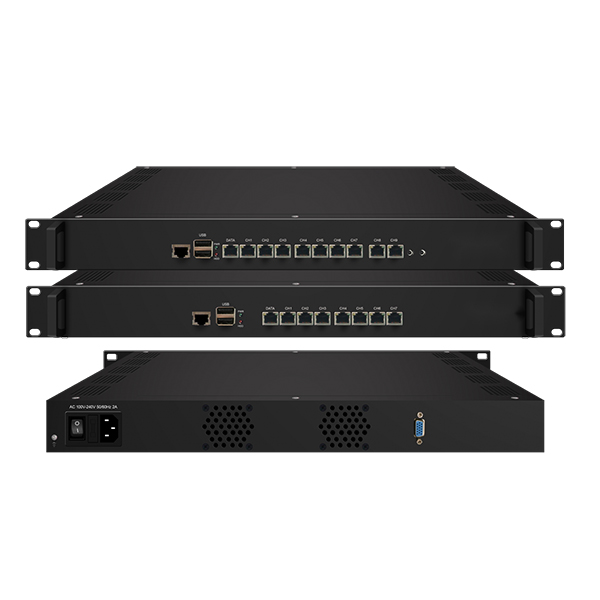

Iptv OTT live streaming Servier
Main Features
* 8 Data ports ( NDS3508F/NDS3508F-M) :
First Data port: IP out over HTTP, UDP (SPTS), HLS and RTMP
Data CH1-7 ports: IP in over HTTP, UDP (SPTS), RTP (SPTS), RTSP and HLS
IP out over HTTP, HLS and RTMP (Unicast)
10 Data ports ( NDS3508F-10) :
First Data port: IP out over HTTP, UDP (SPTS), HLS and RTMP
Data CH1-9 ports: IP in over HTTP, UDP (SPTS), RTP (SPTS), RTSP and HLS
IP out over HTTP, HLS and RTMP (Unicast)
* Support TS files uploading through Web management
* Support IP anti- jitter function
* Support adding scrolling caption, welcome words, boot image and boot video (this function is only applicable to IP out application and the STB/Android TV must be installed Dexin IPTV APK)
* Support downloading Dexin IPTV APK directly from this device
* Support about 80 HD/SD programs (Bitrate:2Mbps) When HTTP/RTP/RTSP/HLS is converted into UDP (Multicast),the actual application shall prevail, and suggest maximum 80% CPU utilization
* Support program playing with APK downloaded android STB and TV, maximum 150 terminals
* Control via web-based NMS management through DATA port
IP Protocol Conversion
General Principle Chart
Specifications
|
Input |
IP input thru CH 1-7(1000M) over HTTP, UDP(SPTS), RTP(SPTS), RTSP (over UDP, payload: mpeg TS) and HLS( NDS3508F/NDS3508F-M)
IP input thru CH 1-7(1000M) over HTTP, UDP(SPTS), RTP(SPTS), RTSP (over UDP, payload: mpeg TS) and HLS( NDS3508F-10) |
||
| TS files uploading through Web management | |||
|
IP output |
IP out thru Data port (1000M) over HTTP (Unicast), UDP(SPTS, Multicast) HLS and RTMP (Program source should be H.264 and AAC encoding)
IP out thru CH 1-7(1000M) over HTTP/ HLS/RTMP (Unicast)(NDS3508F/NDS3508F-M); IP out thru CH 1-7(1000M) over HTTP/ HLS/RTMP (Unicast)(NDS3508F-10) |
||
|
System |
CPU: NDS3508F(1037)/NDS3508F-M(I7)
NDS3508F-10( Celeron 3965) |
Memory: 4G | |
| Solid-State Disk (SSD): 16G (60G optional) | |||
| Channel switching time with DEXIN’ STB: HTTP (1-3s), HLS (0.4-0.7s) | |||
| Support adding scrolling caption, welcome words, boot image and boot video (this function is only applicable to IP out application and the STB/Android TV must be installed Dexin IPTV APK) | |||
| Play programs with APK downloaded android STB and TV, maximum 150 terminals(See details in below Test data for reference) | |||
| Support about 80 HD/SD programs (Bitrate: 2Mbps) When HTTP/RTP/RTSP/HLS is converted into UDP (Multicast), the actual application shall prevail, and suggest maximum 80% CPU utilization | |||
| web-based NMS management thru DATA port | |||
|
General |
Demission | 482mm×324mm×44mm (WxLxH) | |
| Temperature | 0~45℃(operation), -20~80℃(storage) | ||
| Power Supply | AC 100V±10%, 50/60Hz or AC 220V±10%, 50/60Hz | ||
Application:
Maximum 200 Terminals solution
Head-end devices:
|
Data Source |
Function |
Mark |
|
NDS3508B Tuner to IP Gateway |
Receiving FTA Programs |
Input: 16 tuner, 2ASI
Output: IP (16 MPTS or 512 SPTS) |
|
NDS3585 4 in 1 IRD |
Decrypting programs |
Input:4 RF, 1ASI, 4IP Output: IP (48 SPTS and 4 MPTS), 4ASI Support descramble programs through 4 CAMs/CIs |
|
NDS3224V HEVC/H.265 HD Encoder |
HDMI HD Programs |
Input: 4/8/12×HDMI Output: IP (1 MPTS and 4/8/12 SPTS) Support H.265/HEVC, H.264/AVC Encoding |
|
NDS3508F IPTV Gateway |
Converting protocol |
Input: 7 channels IP over UDP Output: 1channel IP over HTTP |
Receiving devices:
| Data Source | Function | Mark |
| NDS3508F IPTV Gateway |
As a receiver to receive programs from public Network |
Input IP protocol: HTTP
Output IP protocol: UDP Support about 80 HD/SD programs (Bitrate: 2Mbps), suggest maximum 80% CPU utilization |
| NDS3508F IPTV Gateway | As a server | Input IP protocol: UDP
Output IP protocol: HTTP/HLS maximum 250 terminals |
Terminal devices:
| Terminal Type | Mark |
| Android STB with APK | Support HTTP&HLS protocol
Support Dexin APK configuration |
| Android TVs with APK | Support HTTP&HLS protocol
Support Dexin APK configuration Support self-start Dexin APK when TV is on |
Total device number:
| Head-end device | Device | Number |
| NDS3508B Tuner to IP Gateway | 1 | |
| NDS3585 4 in 1 IRD | 1 | |
| NDS3224V HEVC/H.265 HD Encoder | 1 | |
| NDS3508F IPTV Gateway | 1 | |
| Receiving device | NDS3508F IPTV Gateway | 2 |
| Terminal device | Android STB with APK/ Android TVs with APK | maximum 250
|
Head-end devices:
| Data Source | Function | Mark |
|
NDS3508B Tuner to IP Gateway |
Receiving FTA Programs | Input: 16 tuner, 2ASI
Output: IP (16 MPTS or 512 SPTS) |
| NDS3585 4 in 1 IRD | Decrypting programs | Input:4 RF, 1ASI, 4IP
Output: IP (48 SPTS and 4 MPTS), 4ASI Support descramble programs through 4 CAMs/CIs |
| NDS3224V HEVC/H.265 HD Encoder | HDMI HD Programs | Input: 4/8/12×HDMI
Output: IP (1 MPTS and 4/8/12 SPTS) Support H.265/HEVC, H.264/AVC Encoding |
| NDS3508F IPTV Gateway | Converting protocol | Input: 7 channels IP over UDP
Output: 1channel IP over HTTP |
Receiving devices:
| Data Source | Function | Mark | |||||||||||||||
| NDS3508F IPTV Gateway | As a receiver and a server, please view the following data for reference.
|
Input IP protocol: HTTP
Output IP protocol: HTTP/HLS |
Terminal devices:
| Terminal Type | Mark |
| Android STB with APK | Support HTTP&HLS protocol
Support Dexin APK configuration |
| Android TVs with APK | Support HTTP&HLS protocol
Support Dexin APK configuration Support self-start Dexin APK when TV is on |
Total device number:
| Head-end device | Device | Number |
| NDS3508B Tuner to IP Gateway | 1 | |
| NDS3585 4 in 1 IRD | 1 | |
| NDS3224V HEVC/H.265 HD Encoder | 1 | |
| NDS3508F IPTV Gateway | 1 | |
| Receiving device | NDS3508F IPTV Gateway | 1 |
| Terminal device | Android STB with APK/ Android TV with APK |
According to NDS3508F’s CPU utilization after receiving programs. |
The number of terminals according to the cloud server
Head-end devices:
| Data Source | Function | Mark |
| NDS3508B Tuner to IP Gateway |
Receiving FTA Programs |
Input: 16 tuner, 2ASI
Output: IP(16 MPTS or 512 SPTS) |
| NDS3585 4 in 1 IRD | Decrypting programs | Input:4 RF, 1ASI, 4IP
Output: IP (48 SPTS and 4 MPTS), 4ASI Support descramble programs through 4 CAMs/CIs |
| NDS3224V HEVC/H.265 HD Encoder | HDMI HD Programs | Input: 4/8/12×HDMI
Output: IP (1 MPTS and 4/8/12 SPTS) Support H.265/HEVC, H.264/AVC Encoding |
| NDS3508F IPTV Gateway | Converting protocol | Input: 7 channels IP over UDP
Output: 1channel IP over HTTP and HLS |
Receiving devices:
| Data Source | Function | Mark |
| Cloud Server | Receiving and store programs and as a server | Input IP protocol: HTTP/HLS
Output IP protocol: HTTP/HLS Support Dexin OTT software configuration |
Terminal devices:
| Terminal Type | Mark |
| Android STB with APK | Support HTTP&HLS protocol
Support Dexin APK configuration |
| Android TV with APK | Support HTTP&HLS protocol
Support Dexin APK configuration Support self-start Dexin APK when TV is on |
| Mobile Phone or Tablet PC | Installing Dexin OTT APP |
Total device number:
| Head-end device | Device | Number |
| NDS3508B Tuner to IP Gateway | 1 | |
| NDS3585 4 in 1 IRD | 1 | |
| NDS3224V HEVC/H.265 HD Encoder | 1 | |
| NDS3508F IPTV Gateway | 1 | |
| Receiving device | Cloud Server | 1 |
| Terminal device | Android STB with APK/ Android TV with APK/ Mobile Phone or Tablet PC with Dexin OTT APP | The number of terminals according to the cloud server |
Test data for reference:
|
Protocol conversion |
Programs |
Bitrate |
Terminals |
CPU utilization |
|
|
— |
NDS3508F/ NDS3508F-10 |
NDS3508F-M |
— |
||
|
HTTP/RTP/RTSP/HLS to UDP |
80 |
2M |
— |
— |
55% |
|
HTTP to HTTP |
30 |
2M |
150 |
300 |
80% |
|
50 |
2M |
80 |
160 |
80% |
|
|
HTTP to HLS |
50 |
2M |
200 |
400 |
46% |
|
UDP to HLS |
50 |
2M |
200 |
400 |
50% |
|
80 |
2M |
150 |
300 |
72% |
|
|
UDP to HTTP |
50 |
2M |
120 |
240 |
50% |
| Order Guide: | |||||
| Feature | Memory | CPU | Solid-State Disk(SSD) | Mechanical Hard Disk | |
| NDS3508F | Gateway | 4G | 1037 | 60G | × |
| NDS3508F-10 | Gateway | 4G | Celeron 3965 | 60G | × |
| NDS3508F-M | Gateway | 4G | i7 | 60G | × |
| NDS3508S-M | Gateway | 5G | i7 | 80G | 4T |
| NDS3508S-I | Gateway | 8 | i7 | 80G | 4T |
| NDS3508I | Gateway | 8 | i7 | 80G | 4T |
