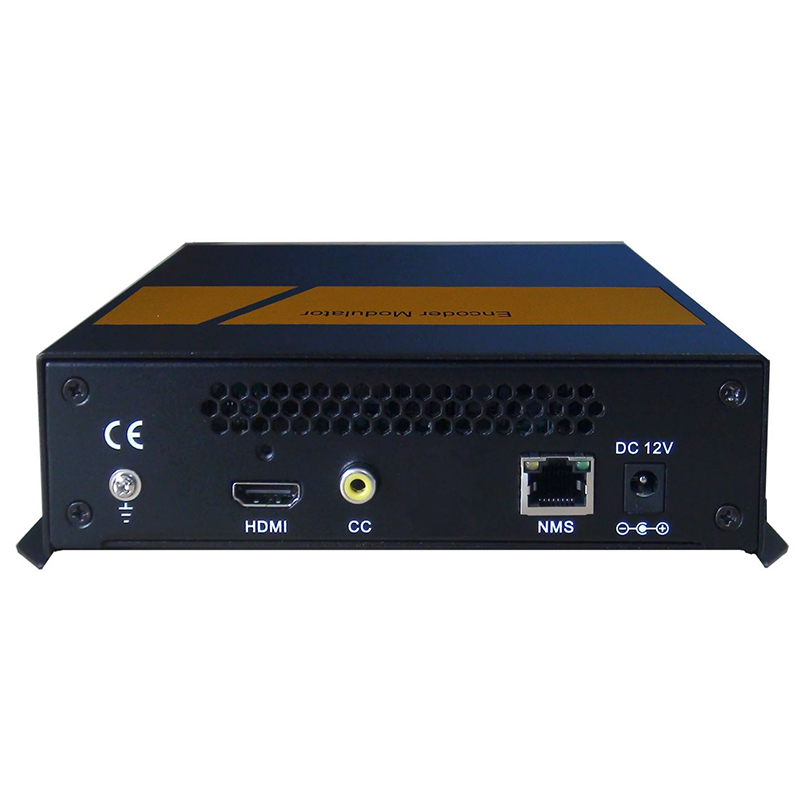

NDS3522C HD Encoder Modulator

Short Description:

HD Encoder Modulator

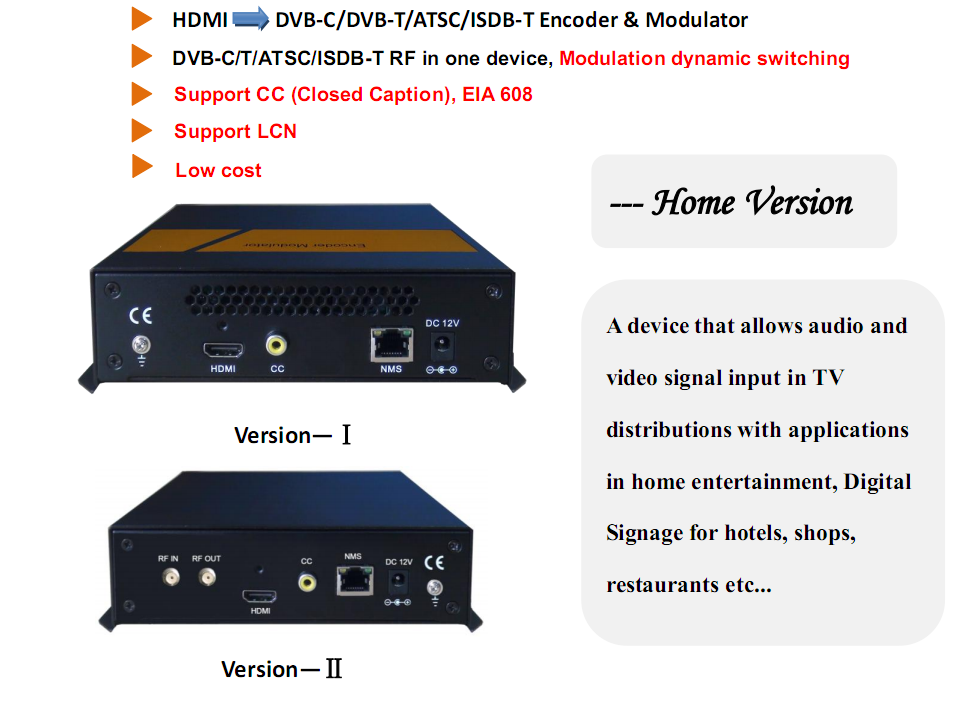

DEXIN NDS3522C HD encoder & modulator is designed based on consumer electronics which allow audio/video signal input in TV distributions with applications in home entertainment, surveillance control, hotel Digital Signage, shops etc.

It is an all-in-one device integrating MPEG2 encoding and modulating to convert audio/video signals into DVB-C/T/ATSC/ISDB-T RF out.

The signals source could be from STB, satellite receiver, closed-circuit television cameras and antenna etc. Its output signal is to be received by TVs or STBs etc.

Send email to us

Product Detail

Product Tags

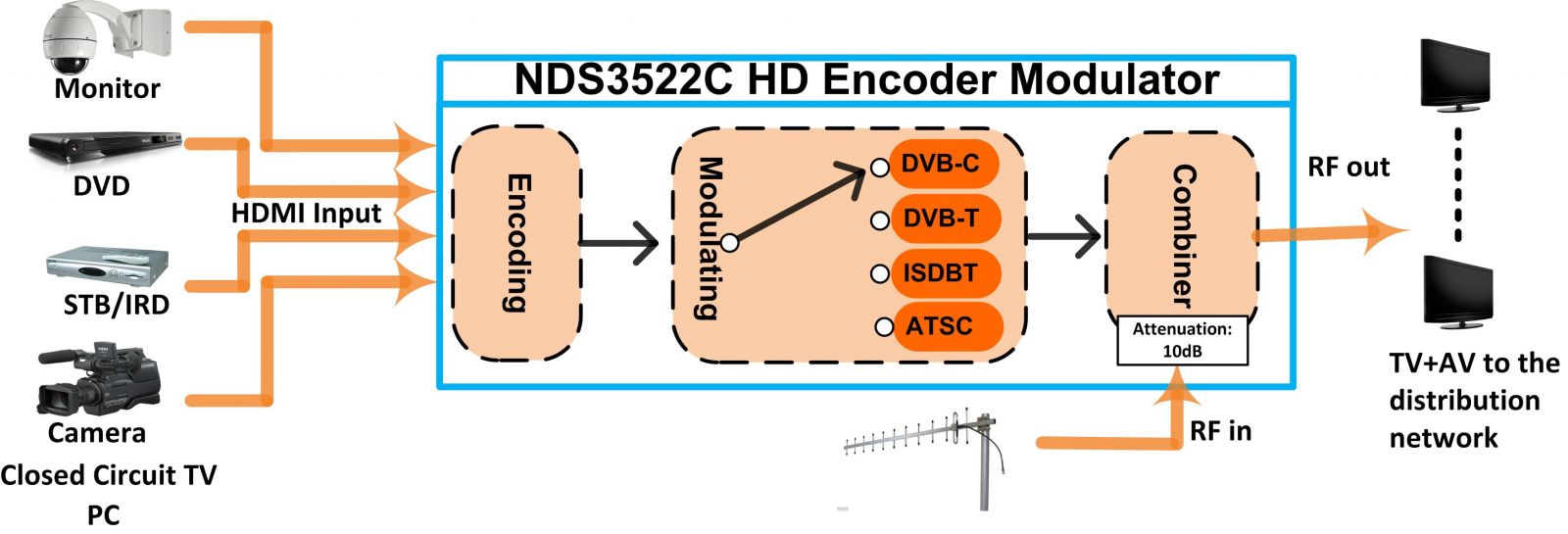

System Connection

Technical Specifications

HDMI Encoding Section
Video	Encoding			MPEG2
	Interface			HDMI*1
	Input			Output
	480@59.94/60i			480@30p
	576@50i			576@25p
	720@50/59.94/60p			720@25/30p
	1080@50i			1080@25p
	1080@59.94/60i			1080@30p
	1080@50p			1080@25p
	1080@59.94/60p			1080@30p
	Aspect Ratio			16:9
	Bit rate			1.000~20.000 Mbps
Audio	Encoding			MPEGI layer 2, AAC, AC3
	Sample rate 48KHz
	Bit rate			MPEGI layer 2（192kbps）
				AAC（VBR）
				AC3（128kbps）
DVB-C Modulator Section
Standard			J.83A (DVB-C), J.83B
MER			≥35dB
RF frequency			100-1000MHz, 1KHz step
RF output level			-63~ -16dBm, 1dB step
Symbol rate			3.000~7.000Msps adjustable
		J.83A			J.83B
Constellation		16/32/64/128/ 256 QAM			64/ 256 QAM
Bandwidth		8M			6M
DVB-T Modulator Section
Standard		DVB-T COFDM
Bandwidth		2M, 3M, 4M, 5M, 6M, 7M, 8M (Version—Ⅰ) 6M, 7M, 8M (Version—Ⅱ)
Constellation		QPSK, 16QAM, 64QAM
Code rate		1/2, 2/3, 3/4, 5/6, 7/8
Guard Interval		1/32, 1/16, 1/8, 1/4
Transmission Mode:		2K, 8K
MER		≥35dB
RF frequency		100-1000MHz, 1KHz step
RF output level		-63~ -16dBm, 1dB step
ISDB Modulator Section
Standard		ARIB STD-B31
Constellation		QPSK, 16QAM, 64QAM
Guard Interval		1/32, 1/16, 1/8, 1/4
Transmission Mode		2K, 4K, 8K
Code rate		1/2, 2/3, 3/4, 5/6, 7/8
RF frequency		100~1000MHz, 1KHz step
RF output level		-63~ -16dBm, 1dB step
ATSC Modulator Section
Standard		ATSC A/53
Constellation		8 VSB
RF output level		-63~-16dBm (44~91 dBµV), 1dB step
MER		≥35dB
RF frequency		100~1000MHz, 1KHz step
RF output level		-63~ -16dBm, 1dB step
System

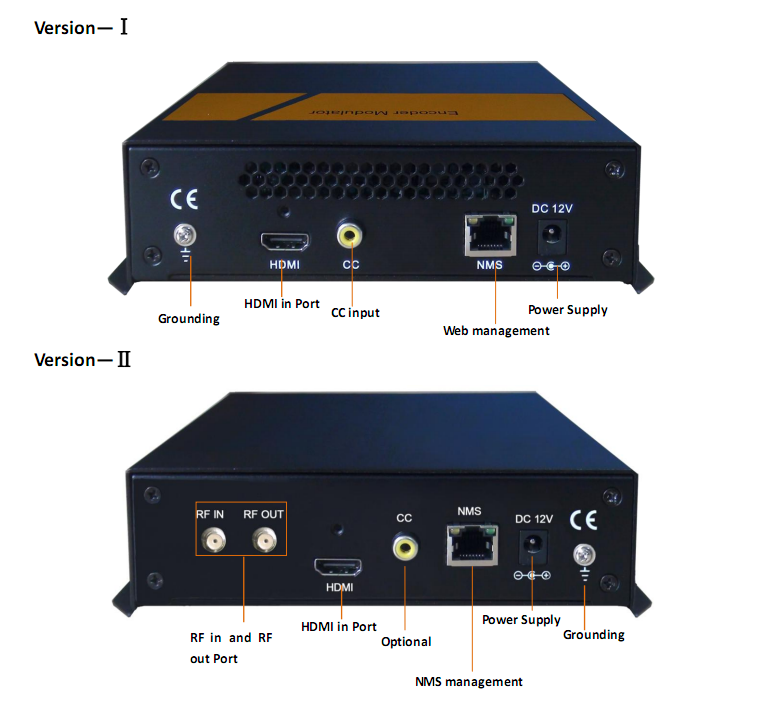

Management		Web (Version—Ⅰ) NMS (Version—Ⅱ)
Language		English
Upgrade		Web update (Version—Ⅰ) ST Link utility (Version—Ⅱ)
General
Power supply		DC 12V
Dimensions		20314452mm (Version—Ⅰ) 18011039.5mm (Version—Ⅱ)
Weight		< 1kg
