NDS3908I 8 in 1 Decoder

Short Description:

8*IP + ASI input→ 8*CVBS output

Product Overview

NDS3908I is a digital decoder designed by DEXIN Digital Technology with proprietary intellectual property rights.

It is a 1-U case which supports digital TS input via both IP and ASI. After decoding process, it outputs as much as 8 channels of analog A/V signals. Its pluggable structure design greatly facilitates the change of decoder modules as needed.

To meet customers’ various requirements, NDS3908I is also equipped ASI output to transfer the TS to other equipment for more purposes.




Product Detail

Product Tags

Key Features

* 8*IP and 1*ASI input

* 8*CVBS video/unbalanced stereo audio decoding out

* MPEG-2/H.264/AVS+ Video Decoding, MPEG1 Lay2/AC3 (2.0) Audio Decoding

* Real-time bit rate monitoring

* High reliability design, stable performance

* Easy manage with LCD and web-server remote control

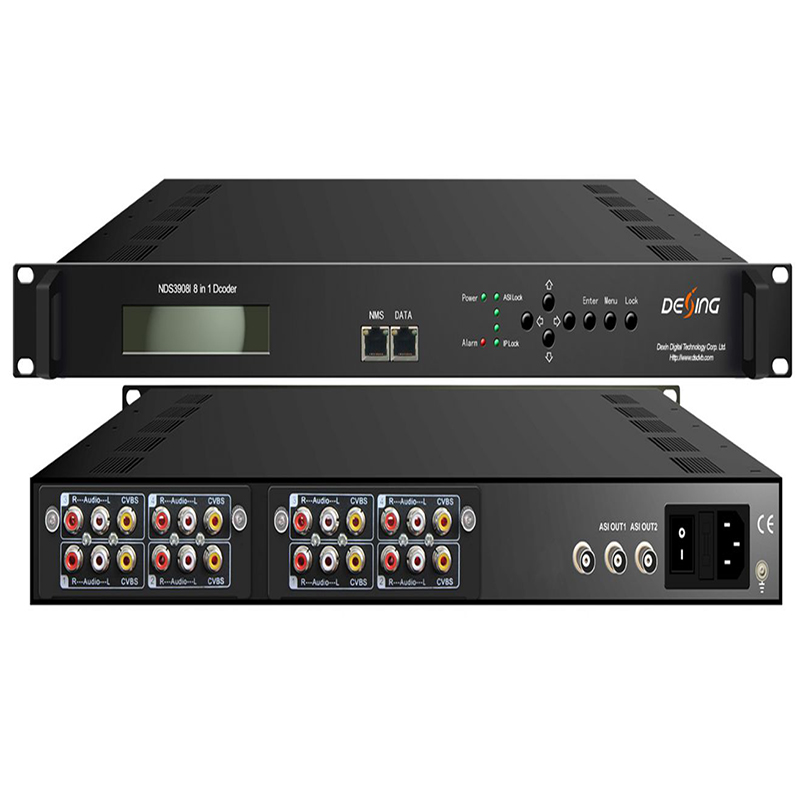

NDS3908I-8-in-1-Decoder

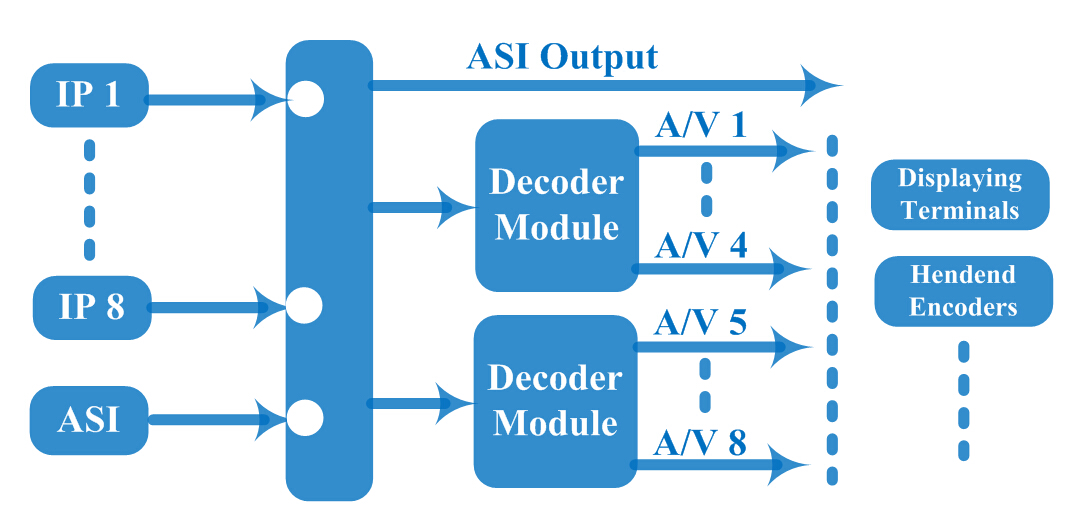

Principle Chart

 NDS3908I 8 in 1 Decoder principle

Specification

Input 8*IP (MPTS/SPTS) (100Mbps Ethernet) (RJ45)
IP Protocol UDP and RTP (Unicast/multicast)
1* ASI (BNC)
Decode Video Format MPEG-2/H.264/AVS+
Interface 8* CVBS(RCA)
Video Resolution 576i@25fps, 480i@29.97fps
Audio Format MPEG-1 Layer 2, AC3 (2.0)
Interface 8*Unbalanced stereo (RCA)
General Operation LCD display/Control button; Web-server
Language Chinese/English
Dimension (LxWxH) 44 mm×482 mm×410mm
Environment 0~45℃(Work);-20~80℃(Storage)
Power Supply 220VAC±10%,50Hz
Consumption <25W
